#1Is Teletronics 12-212 2.4 GHz 500 mW Indoor Amplifier a class A or AB? What is the power requirement for it?
Tags: None
⌂›Forum›Amplifiers and Repeaters›2.4 GHz Amplifiers›Is Teletronics 12-212 2.4 GHz 500 mW Indoor Amplifier a class A or AB?
The RFWEL Forums are now archived. All threads and discussions are preserved here for reference. New posts, replies, and comments are no longer accepted. For support or enquiries, please visit our Knowledge Base or Contact Us.
Is Teletronics 12-212 2.4 GHz 500 mW Indoor Amplifier a class A or AB?
This thread is part of the RFWEL Forums Archive. It is preserved here for reference and is no longer open for new replies or comments.
⌕
Pageof 1‹›⌗ Filter ▾Danstone
B
Administrator
Join Date: Aug 2020
Posts: 58
07-07-2021, 02:52 PM
#2The 12-212 2.4 GHz Indoor Amplifier is a class AB amplifier.

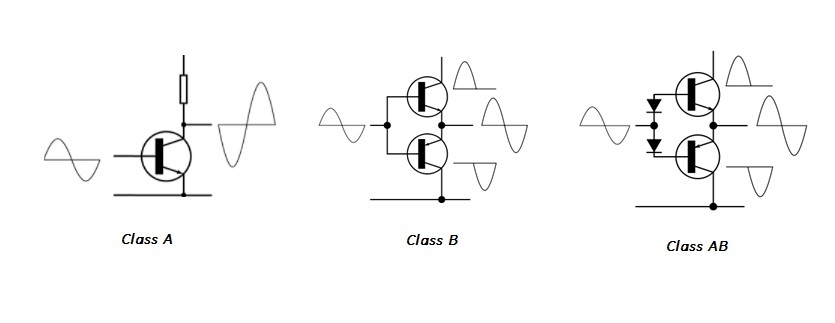

A class A amplifier has a single output transistor which conducts for a full 360° of the cycle of the input waveform.
Class B and AB both have two output transistors. For class B, the output transistors only conduct for one-half, that is, 180° of the input waveform.
Class AB amplifier's output transistors conduct somewhere between 180° and 360° of the input waveform. The class AB amplifier operates as a combination of classes A and B.
That is, for small power outputs the AB amplifier operates as a class A amplifier but changes to a class B amplifier for larger current outputs. Class AB is more linear than Class B but less efficient, but more efficient than class A.
The power requirement for a 12-212 Indoor amplifier is 9V, 1.5A. Another class AB amplifier is the Teletronics 900MHz 12-105 BDA with power requirements of 12V, 4A.
Other classes of amplifiers include Class C, D, E, F, G, and H. For other amplifiers and repeaters, check out this page.
For more on amplifiers and repeaters, feel free to contact our wireless specialists for assistance with your project.
